Quiz #10: What does this symbol mean? → B, a capacitor

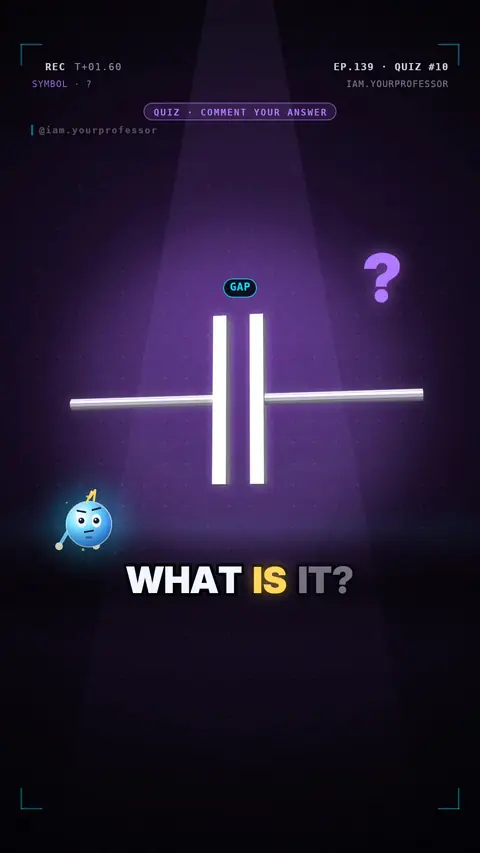

What does this symbol mean? (capacitor: two parallel lines)
QUIZ: two lines, a gap — what does this symbol mean? 🤔
A) Battery B) Capacitor C) Resistor D) Switch
Answer: B, a capacitor! ⚡
It's drawn just like it's built: two metal plates with a tiny gap (an insulator) between them. Charge piles up on the plates: + on one, − on the other.
⚠️ Don't mix it up: a battery's lines are long and short (long = +). And when a capacitor symbol has a + sign (or one curved plate), it's a polarised capacitor — it has a + side and must go in the right way round (the stripe on the can marks the − leg).
Two lines, two plates!
Read the voiceover (transcript)
- Two lines, a gap. What is it?
- Battery, capacitor, resistor, or switch? You have three seconds!
- It's a capacitor! Two metal plates with a tiny gap. Charge piles up on the plates.
- A battery's lines are long and short. A plus sign means the capacitor has a plus side!
- Two lines, two plates!
- Next quiz: the biggest battery? Comment your answer!
